Description

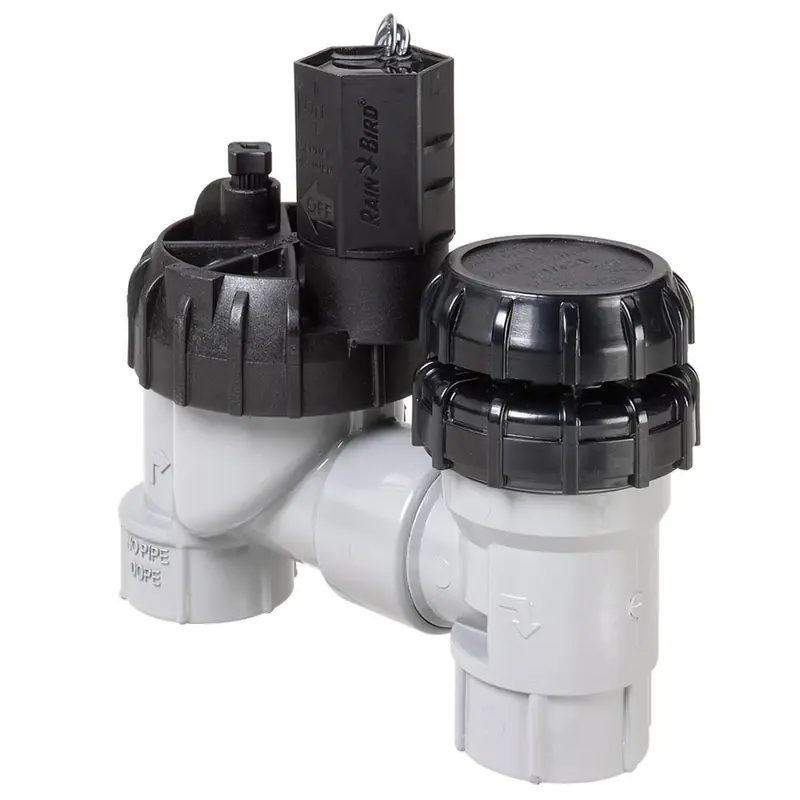

Sure Flow Automatic 1″ Anti-Siphon Valve. Professional Grade Anti-Siphon Valve with Flow Control. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. Anti-Siphon valves should always be installed at least 6 inches above the highest head on the valve line, and should never have another valve installed further down the line from the main valve. After installation and before startup, always the flush system of dirt and debris manually using the valve’s external bleed screw. Equipped with the additional advantage of adjustable flow control, this model helps prevent wasteful misting when water pressure is too high. A top mounted, easy turn flow control knob allows you to optimize flow to the zone, permitting sprinklers to water at their most efficient rate for more uniform coverage.
Combination Electric Remote Control Valve and Atmospheric Backflow Preventer in one unit
Buna-N diaphragm with water filter and captive spring
Energy-efficient, low-power encapsulated solenoid with captured plunger.
External bleed to manually flush system of dirt and debris during installation and system start up.
Spray-free internal bleed for manual operation
Heavy-duty construction with stainless steel screws
Meets I.A.P.M.O. and A.S.S.E. listing specifications
Canadian Standards Association approved
SKU: 7517824
UPC: 077985607104
Weight: 1.7
Package Width: 7.2
Package Length: 3.6
Package Height: 6.8
Model Number: DASASVF100
Brand: Rain Bird
Manufacturer Name: RAIN BIRD CORPORATION-CONSUMER PRD
